CO2 laser tube 150-165W EFR F8

CO2 laser tube 150-165W
EFR type F8


High quality CO2 laser tube with 150W nominal power for engraving and cutting.For laser cutting and engraving machines.

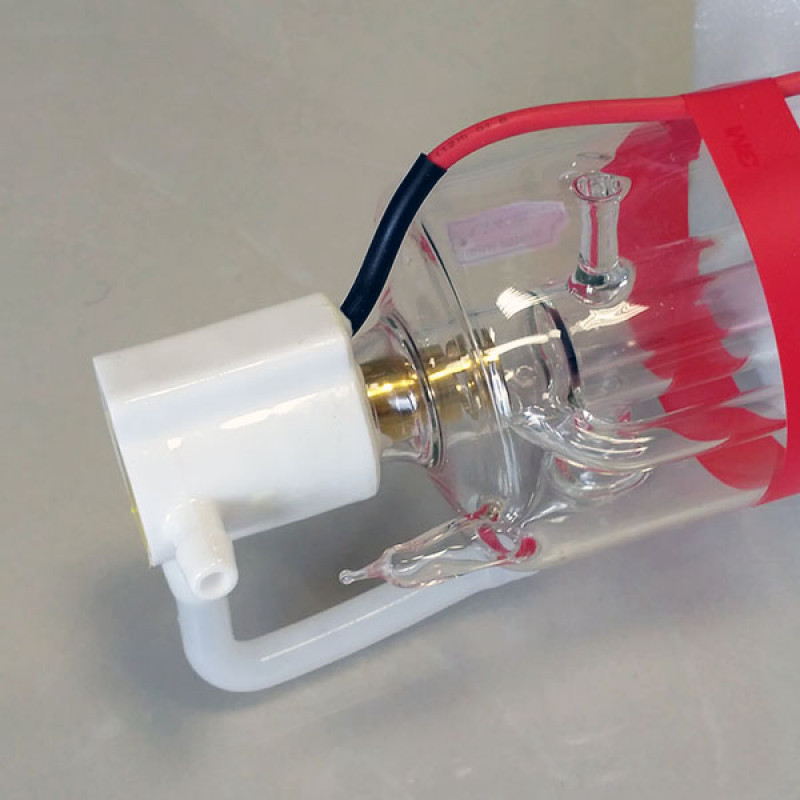

Electrodes pre-fitted with wires from the factory.



Technical parameters:

- Rated power: 150W

- Maximum power: 165W
- Size: 1850mm x 80mm (length x diameter)
- Wavelength: 10.6um
- Maximum operating current: 30mA
- Cooling: water cooling between 15 - 25C°
- Laser beam diameter: between approx. 3-4mm - Laser beam diameter: between approx. 3-4mm
- Expected lifetime: approx: 6000 operating hours



No warranty: cracking, breaking.
Actual lifetime depends on environmental conditions and laser beam operating power.
