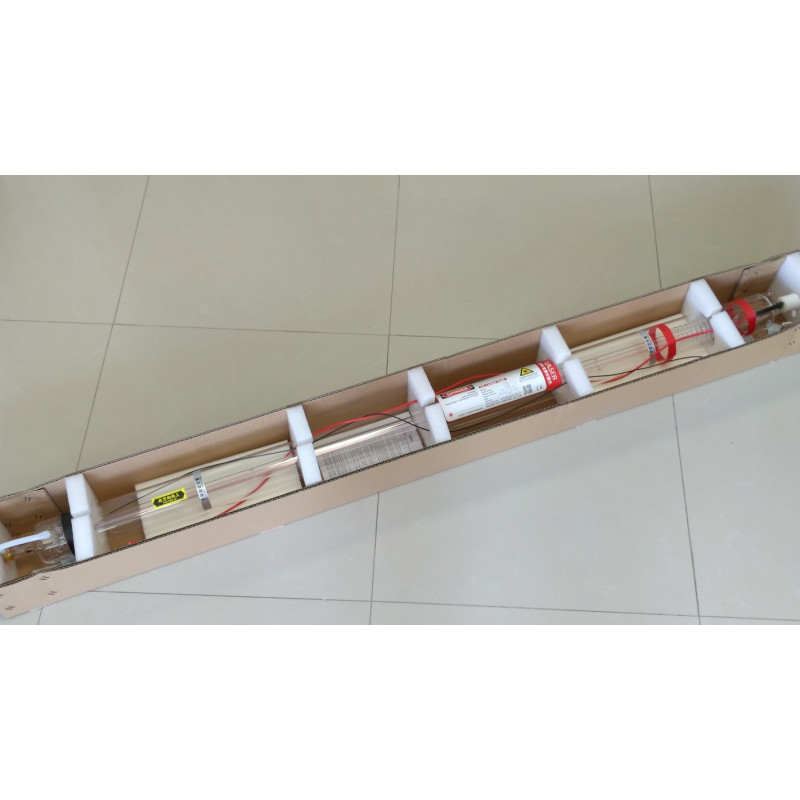

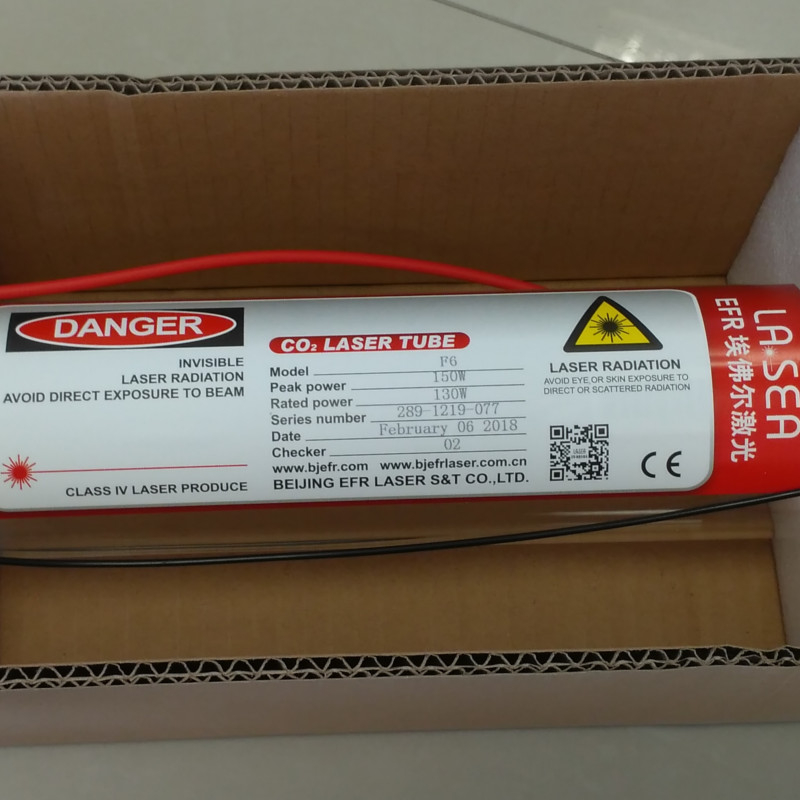

CO2 laser tube 140-160W EFR type F7

CO2 laser tube 140-160W
EFR type F7


For engraving and cutting, CO2 gas laser tube with 130W nominal power.

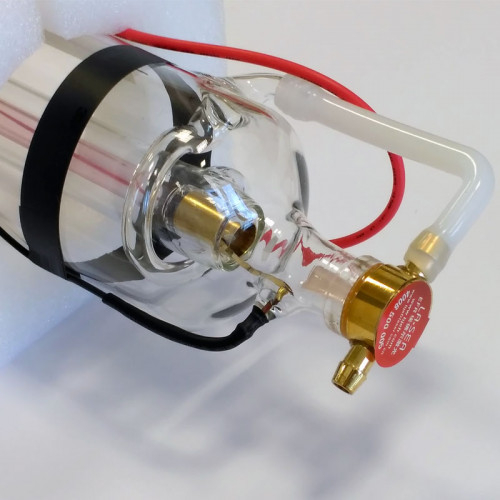

Electrodes pre-fitted with wires at the factory.


Technical parameters:

- Rated power: 140W

- Maximum power: 160W
- Size: 1700mm x 80mm (length x diameter)
- Wavelength: 10.6um
- Maximum operating current: 30mA

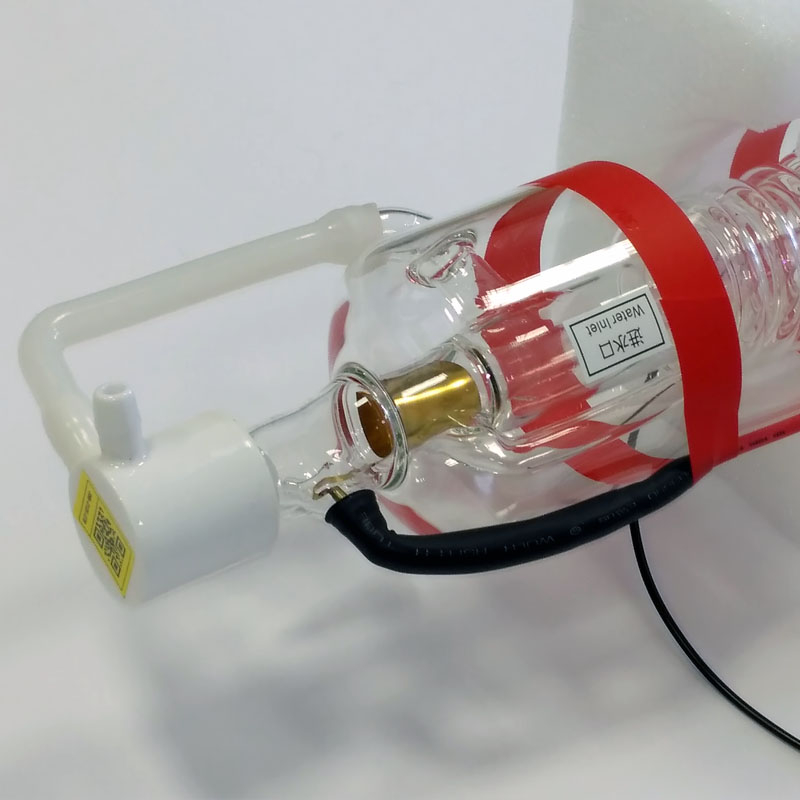

- Cooling: water cooled between 15 - 25C°
- Laser beam diameter: between approx. 3-4mm
- Expected lifetime: approx: 6000 operating hours

Warranty: 1 year.
No warranty: cracks, breakage. The actual lifetime depends on the environmental influences and laser tube operating performance.
