CO2 laser tube 100-120W EFR type F4

CO2 laser tube 100-120W
EFR type F4


For engraving and cutting, CO2 laser tube with 100W nominal power.
Electrodes pre-fitted at the factory with wires.


Technical parameters:

- Rated power: 100W

- Maximum power: 120W
- Size: 1450mm x 80mm (length x diameter)
- Wavelength: 10.6um
- Maximum operating current: 30mA
- Cooling: water cooled between 15 - 25C°
- Laser beam diameter: between approx. 3-4mm
- Expected lifetime: approx: 6000 operating hours






F series CO2 laser tube is the enhanced C02 laser tube of our company which life up to 6000 hours, the power of single laser tube up to 185W with stable luminescence performance. The discharge tube is coated with catalyst, which greatly increases the working life. F series CO2 laser tube has the advantages of smaller size, better beam quality and higher cutting speed compared with the similar products.


---

Use USA IIVI lens and windows & Germany Schott glass tube as discharge tube, performance, reliability, consistency is higher than other similar product.

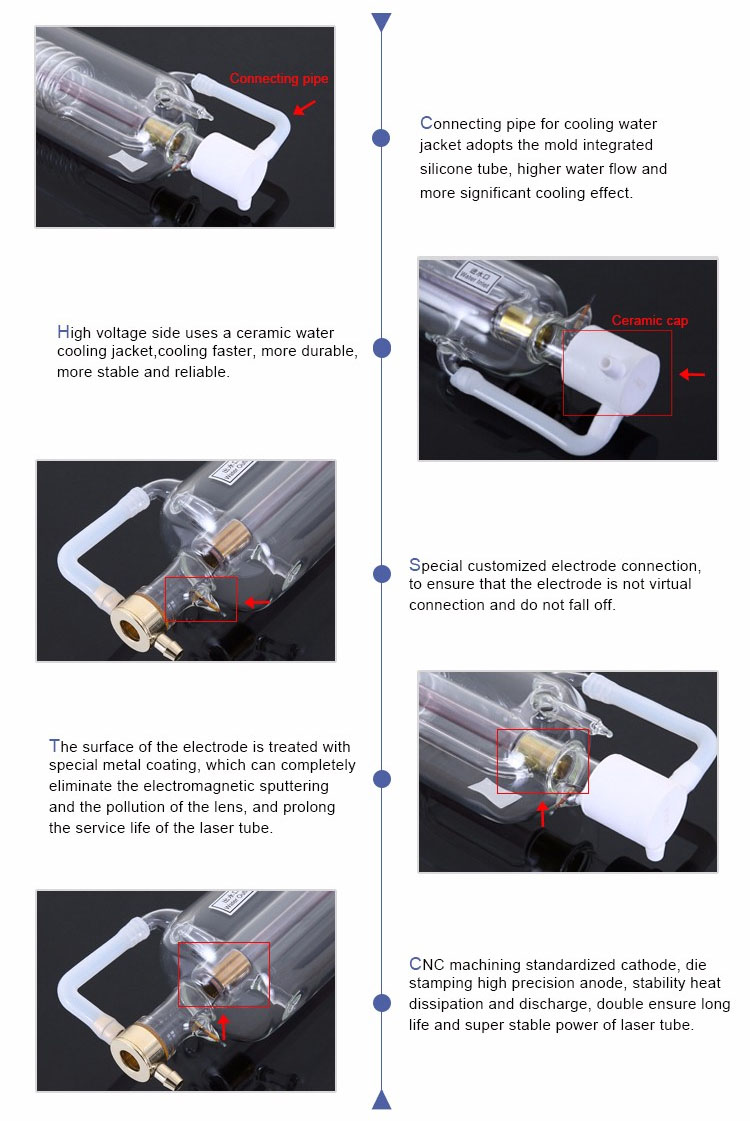

High voltage side uses a ceramic water cooling jacket, reduce problems compared to glass cap which is made by hand.Ceramic heat dissipation better.
The silicone pipe is once molded product, water flow more smoothly.
Improved production processing, reduce gas leakage.
New machining electrode makes discharge more stable.
