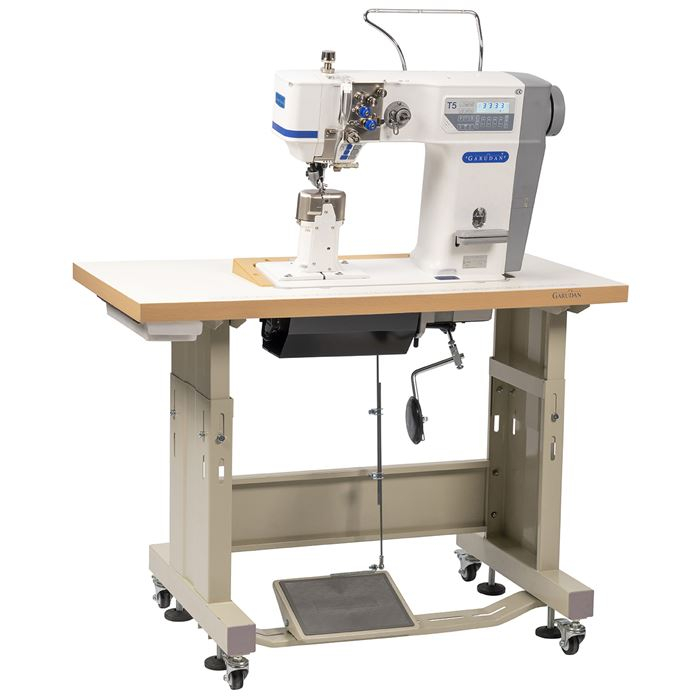

Single needle direct drive post bed industrial machine with upper driven roller, needle and lower circular feed

• Masina de cusut coloanal cu 2 ace, transport circular cu rola Garudan GP-1124-147/T5

This line of machines is characterized by use of direct drive servomotor, high quality of design, low level of noise and vibrations.
■ Machines are equipped with automatic thread trimming, programmable backtacking and electromagnetic presser foot lifting. Powerful direct drive 750 W servomotor (1x 230 V) and control electronics are incorporated in the machine head. Direct drive mechanism minimizes noise, vibration and makes machine assembly easier (there is no need of V-belt). It minimizes the power transmission, which results in advanced working productivity.
■ Machines are equipped by automatic lubrication.
■ No use of clutch for reverse stitching. This solution is safe and maintenance-free.
■ Three available sizes of roller presser foot: 26 mm, 28 mm (standard) and 30 mm.
■ Double needle machines are supplied with following needle gauges: 1.6 mm, 2 mm, 2.4 mm (standard), 3.2 mm.
■ Maximum sewing speed of single needle machines is 3,000 stitches per minute.

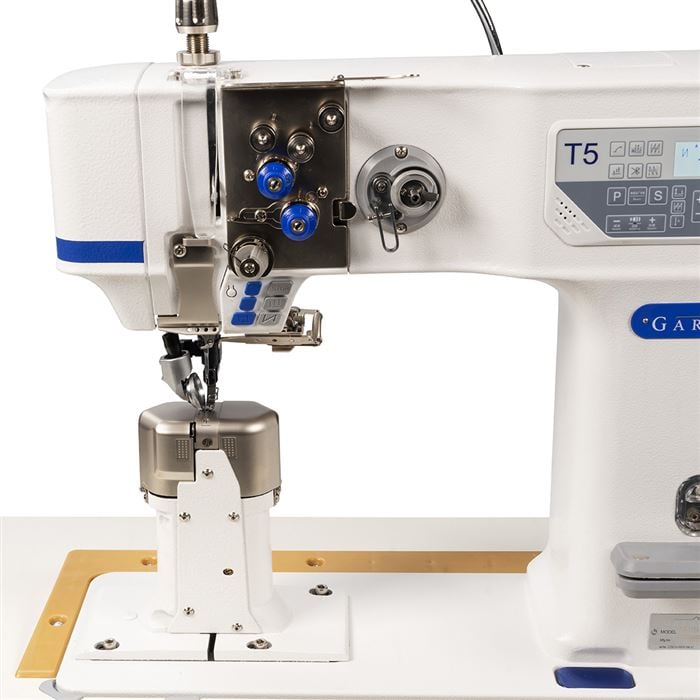

01 Easy to use control panel is incorpora- ted in the machine head.
02 Integrated control panel with 3 buttons: A – Switch of quick reverse stitch; B – Switch of half stitch with two functions. Half stitch is done by pressing the switch, stitching at minimum speed is done by hol- ding the switch; C – Emergency STOP – while pressed, it is blocking the pedal. Press again to cancel this function. 03 LED lighting combined with UV light and flip-up wire are supplied as standard.

---
