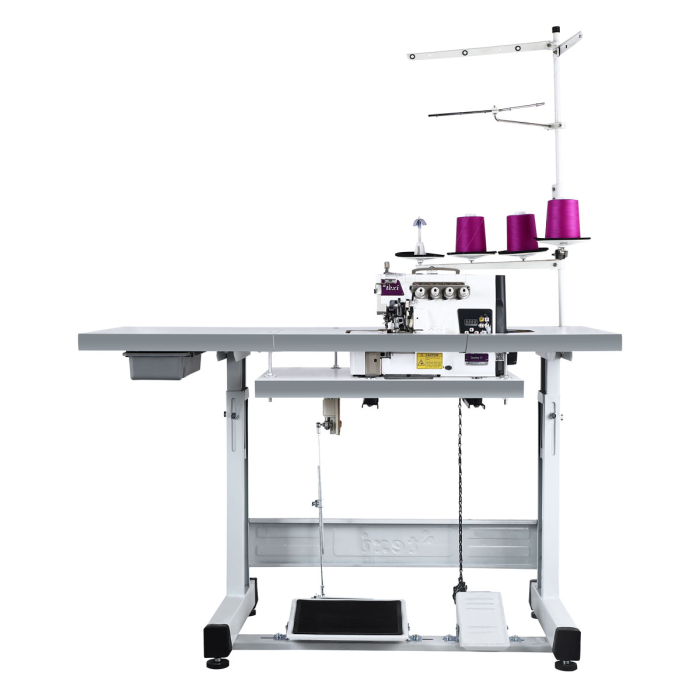

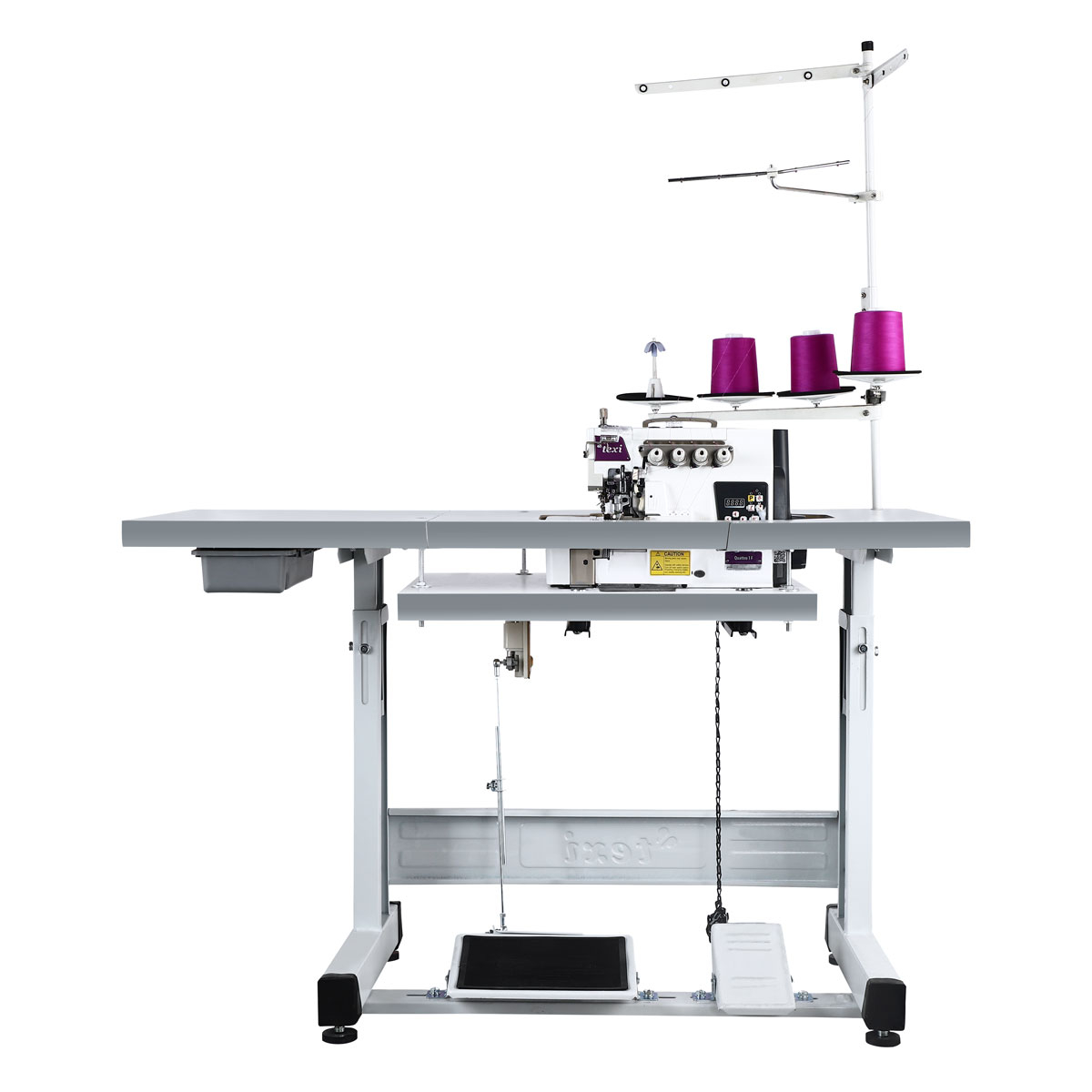

Industrial 2‑needle 4‑thread overlock sewing machine – TEXI QUATTRO 1F, direct drive motor

General Description

TEXI QUATTRO 1F is an industrial 2‑needle, 4‑thread overlock machine designed for light and medium fabrics. Part of the FUTURE series, it delivers elastic, stable and uniform seams thanks to the differential feed system. The integrated direct drive AC Servo motor ensures quiet operation, low vibration and reduced energy consumption.

The closed lubrication system keeps the sewing area clean and prevents oil leakage, while the built‑in LED lamp provides precise illumination. QUATTRO 1F is the upgraded successor of the TEXI QUATTRO 24 N, offering enhanced performance and durability for intensive industrial use.

Technical Specifications

• Maximum sewing speed: 6000 stitches/min
• Stitch length: 0.8 – 4 mm (adjustable)
• Maximum stitch width: 6 mm
• Feed system: differential feed
• Lubrication: central, closed‑circuit system
• Presser foot lift: up to 6 mm
• Needle system: B27

Key Features

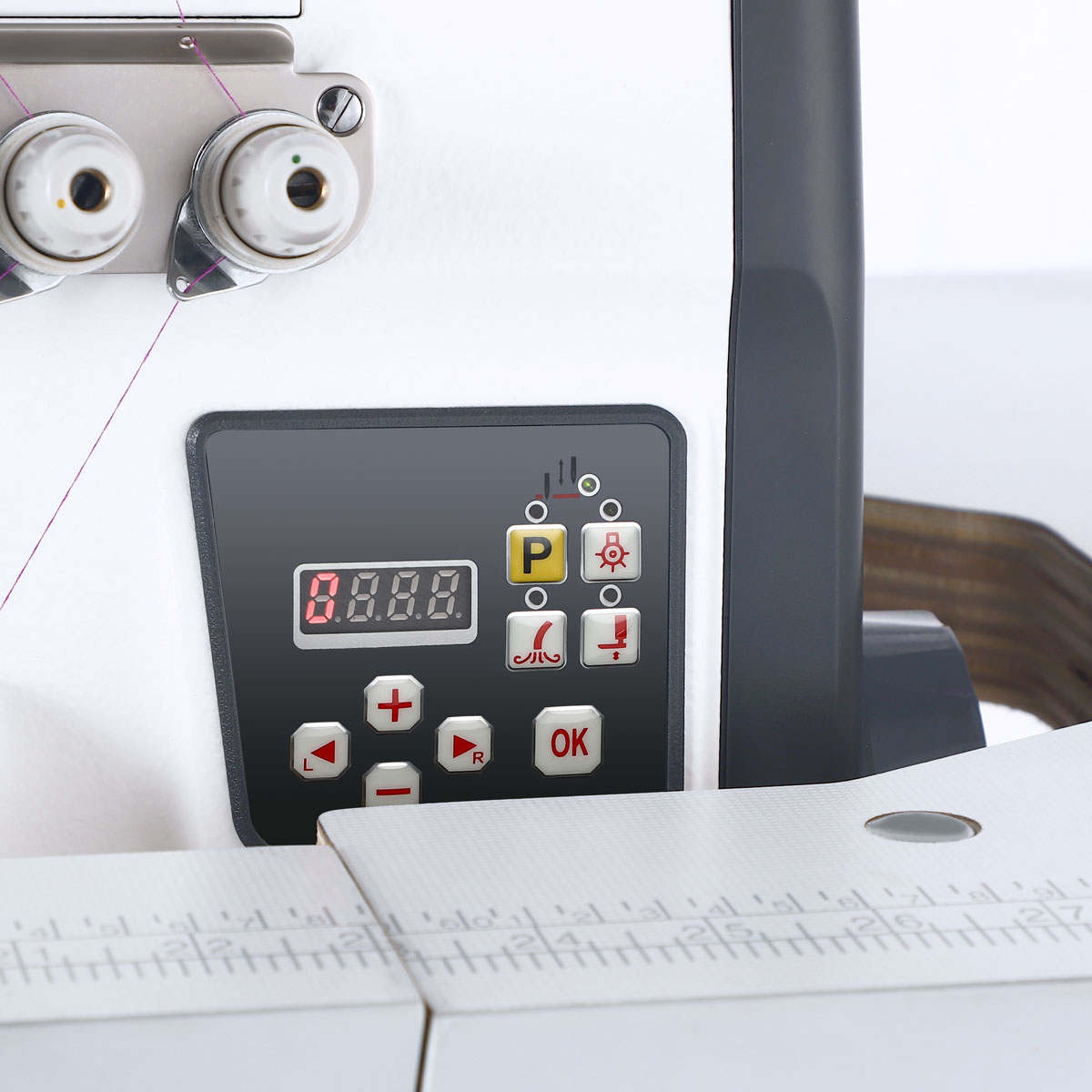

• Automatic needle positioning

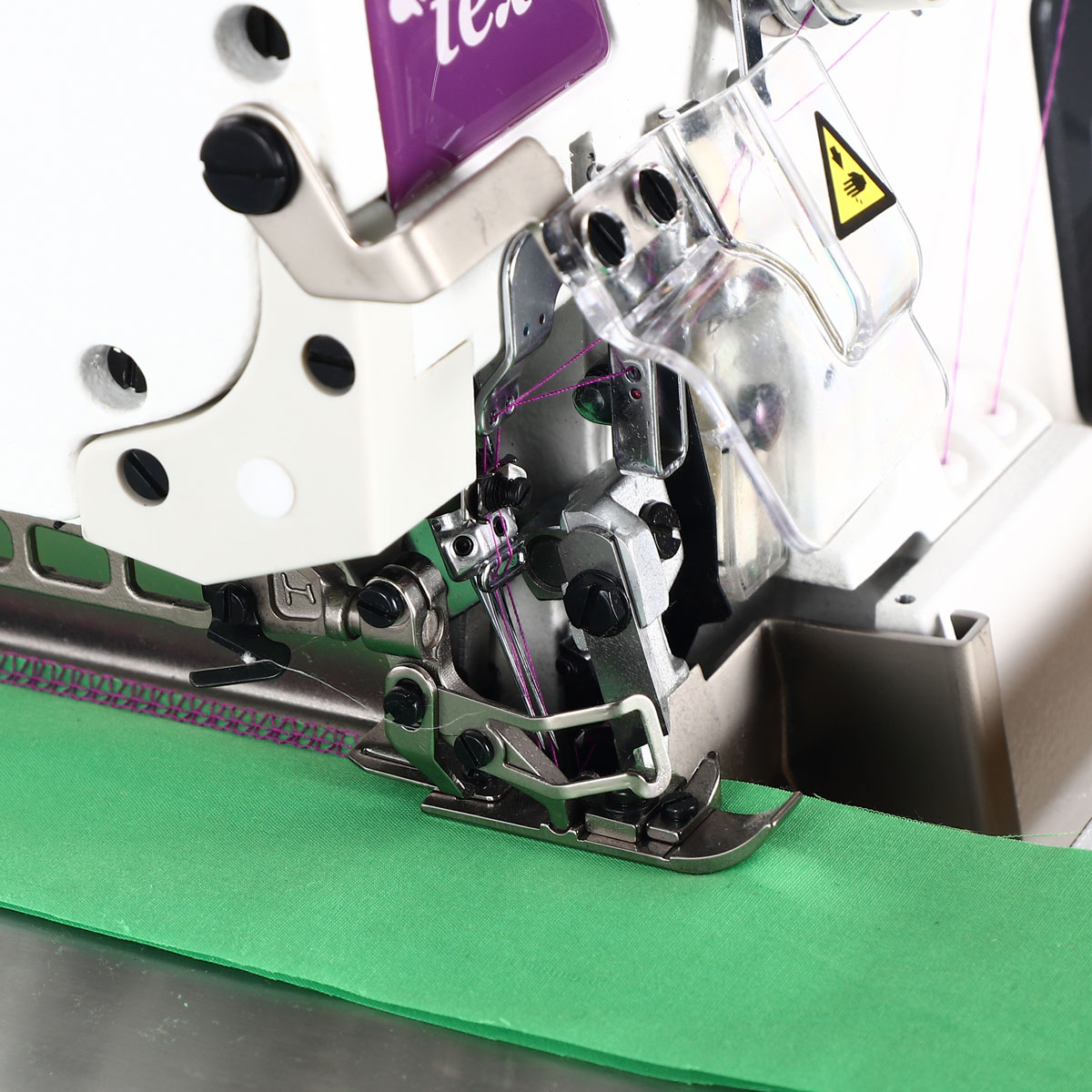

• Differential feed for elastic, fine and knitted fabrics
• Integrated direct drive AC Servo motor – quiet, stable, energy‑efficient
• Closed lubrication system – clean operation, low maintenance
• LED working light
• Compatible with B27 needles
• Complete industrial set: machine head, table and metal stand
