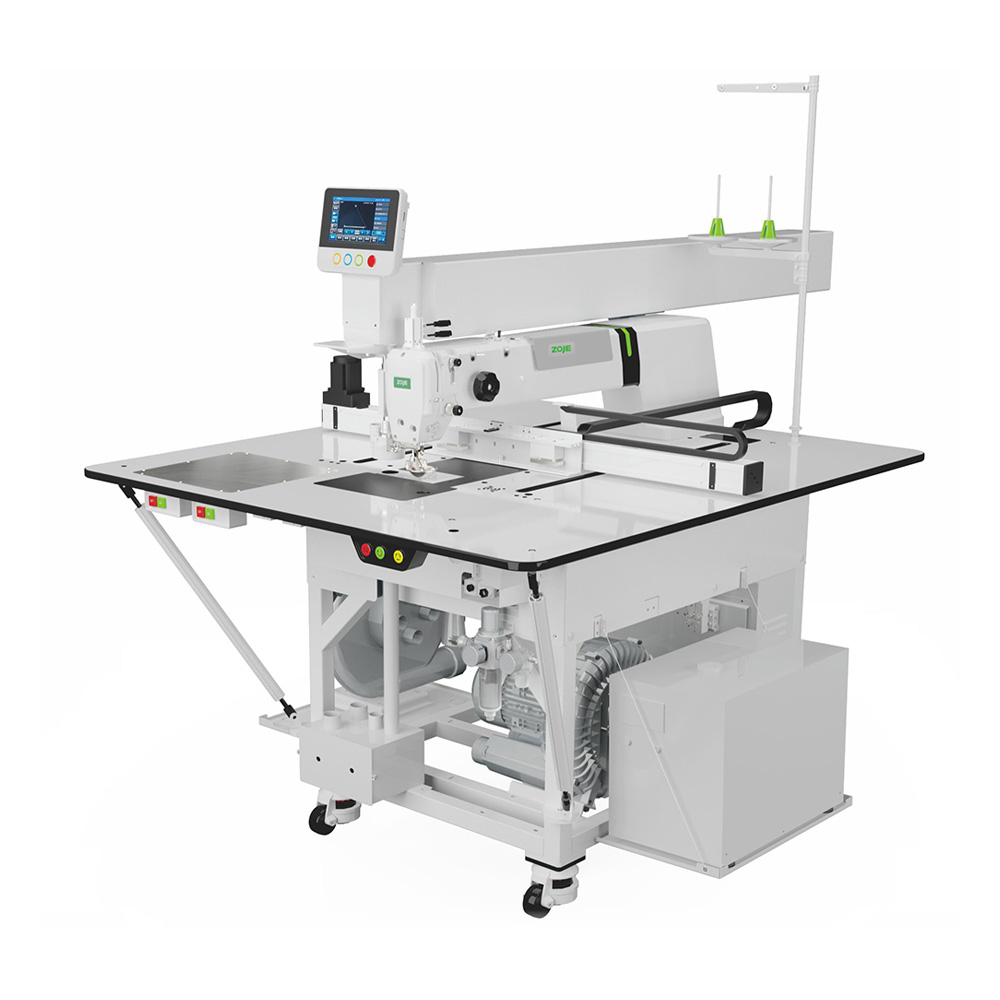

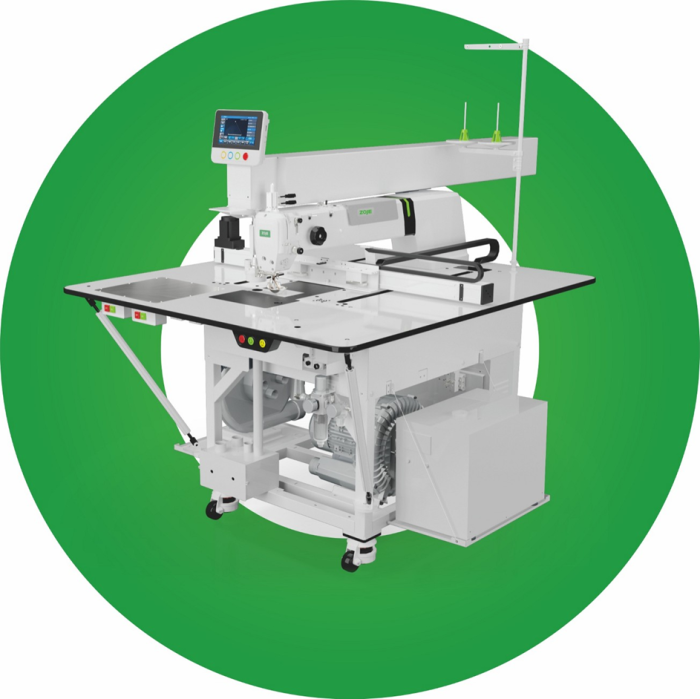

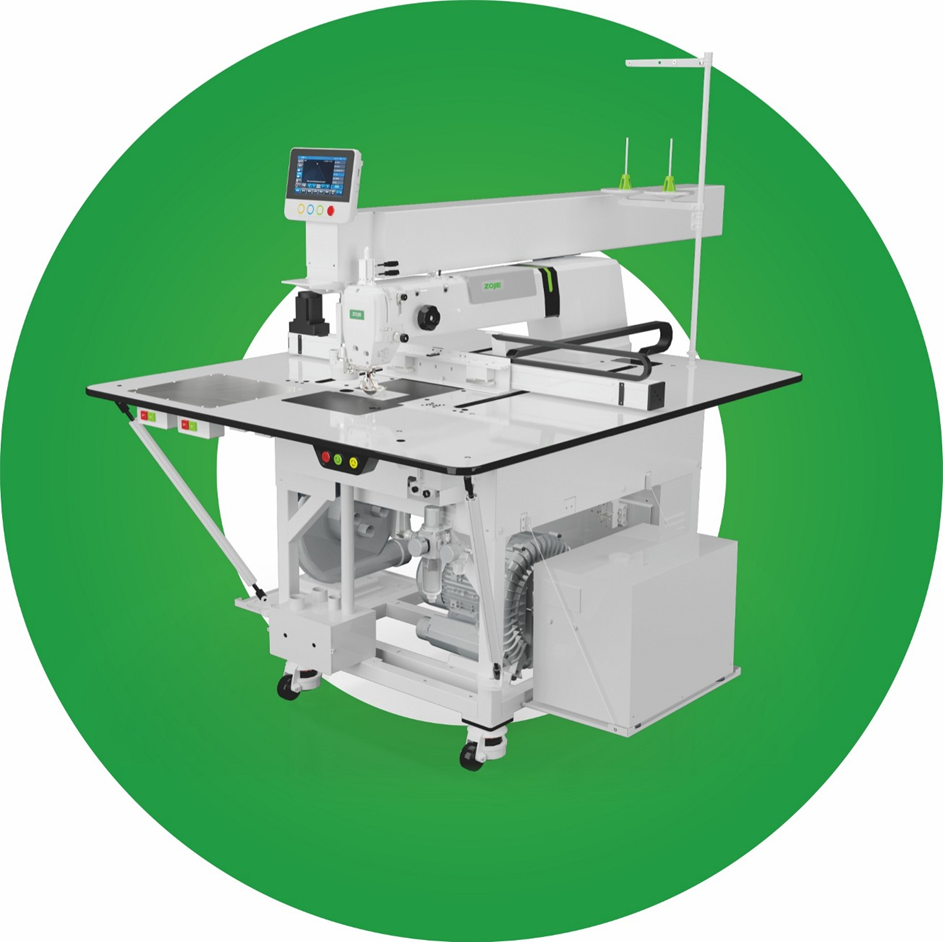

Programmable Sewing Machine ZOJE ZJ‑M3‑S500‑SF‑V3‑LK2‑X with Laser Cutting and Suction System

The ZOJE ZJ‑M3 is a programmable template sewing machine designed for garment production, technical items, leather goods and small‑size components. This model is equipped with laser cutting (LK2) and a table suction system (X), which stabilizes the material during sewing and improves accuracy.

The machine uses stepper motors, an intelligent middle presser foot system, automatic template recognition and support for DXF/PLT files, ensuring high productivity and excellent repeatability. The ZJ‑M3 can store up to 999 patterns, making it ideal for modern production lines.


🟦 TECHNICAL FEATURES

• Sewing area:  – 800 × 500 mm • Needle system: DPx57 – 14#
• Maximum speed: 3200 rpm
• Stitch length: 0.05 – 12.7 mm (0.05 mm increments)

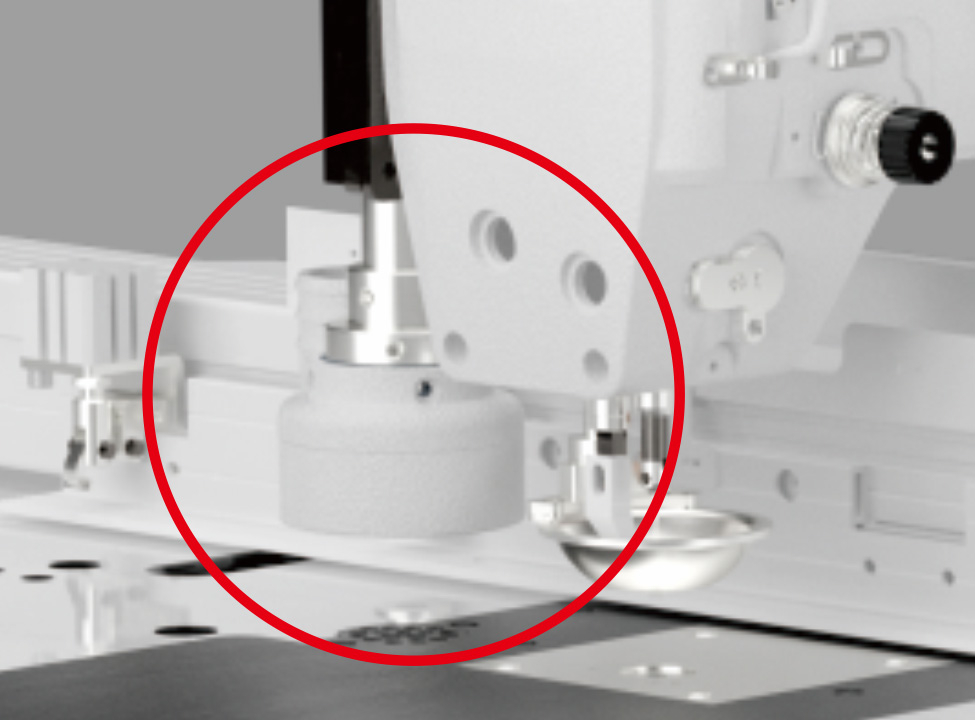

• Intelligent middle presser foot system
• Automatic recognition of 999 templates
• Storage capacity: 999 patterns, up to 50,000 stitches per pattern
• Supported formats: DXF, PLT
• Input voltage: 220V ± 44V • Motor power: 750W
• Options:  

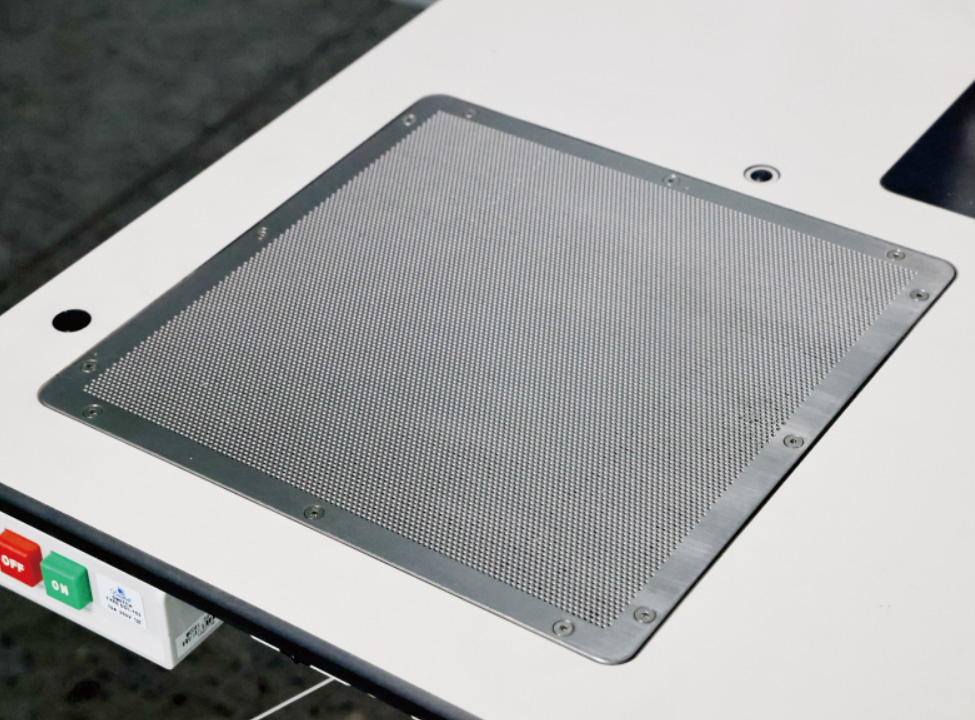

– X: suction system (300×300 mm / 310×480 mm)  
– LK2: CO₂ laser cutting 130W

Optional:  – B: automatic bobbin changer  – VK: oscillating knife for material cutting • Large shuttle (H)
