Raw Edge Binder KHF2 5mm ~ 13mm - Professional Industrial Sewing Machine Attachment

The KHF2 5mm ~ 13mm raw edge binder is a professional precision attachment for small-sized cylinder bed industrial sewing machines, used for applying edge binding tape on thin leather and plastic materials. Manufactured by KH Sew (Kwok Hing) — a specialized manufacturer from Hong Kong with extensive experience in textile industry accessories. Product code: KHF2.

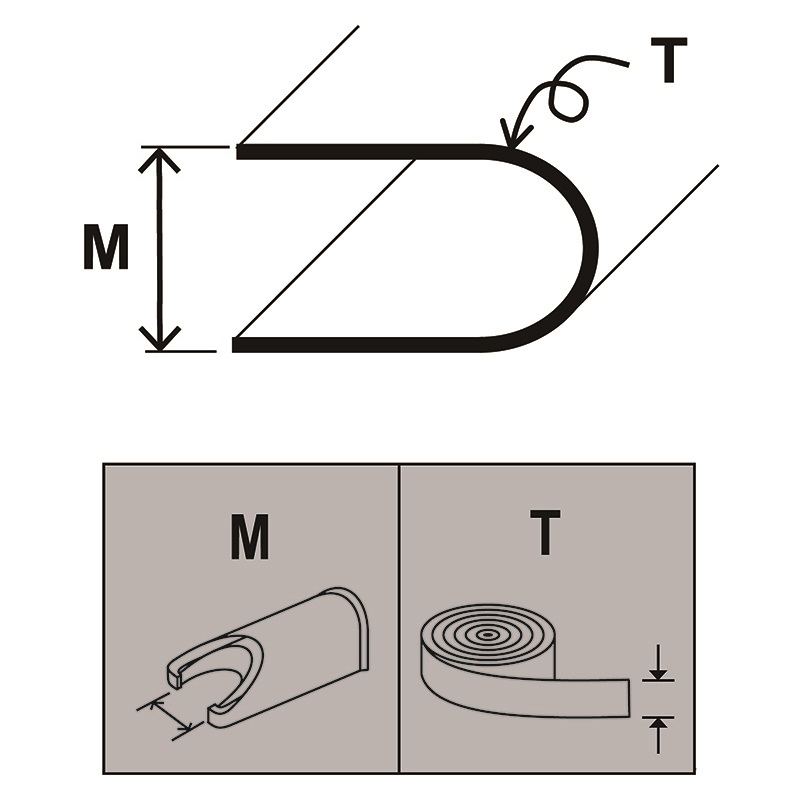

The diagram illustrates the technical parameters of the binder: M = mouth opening, K = tape thickness, T = tape size.

Technical Specifications

Specification	Value
Product code	KHF2
Type	Raw Edge Binder
Mouth opening (M)	5 mm
Tape size (T)	13 mm
Tape thickness (K)	1.8 mm
Machine type	Small-sized Cylinder Bed Machine
Compatible material	Thin leather, plastic materials
Manufacturer	KH Sew / Kwok Hing (Hong Kong)

Compatible Machines

Seiko BBW-8BL
Seiko BBW-8BLC
Juki LU-2860 Class
Juki LU-2810 Class
Juki LU-2210 Class
Brother LS2-B891
Durkopp Adler 367, 467, 767, 867

Key Features

5mm mouth opening — ideal for thin leather and fine plastic materials
13mm tape size — clean and uniform edge finishing
Maximum tape thickness 1.8mm — compatible with standard tapes in the textile industry
Precision construction — uniform material guidance for regular stitches
Compatible with KHF2-GB and KHF2-HB accessories — guide bracket and material holding bracket available separately
Manufactured by KH Sew — specialized manufacturer with international reputation

What Is a Raw Edge Binder?

A raw edge binder is an attachment mounted on an industrial sewing machine that automatically guides and applies an edge binding tape on the sewing material, leaving the tape edge visible (raw, unfolded). It is used especially for thin leather, plastic and synthetic materials where a clean, visible edge is desired as a decorative or functional element.

Parameter M (mouth opening) represents the maximum thickness of material that can be inserted into the binder. Parameter T (tape size) represents the width of the tape used. Parameter K (tape thickness) represents the maximum thickness of the tape.

Compatible Accessories

KHF2-GB — Binder bracket with guide for KHF2 (removable guide for straight and curved binding)
KHF2-HB — Material holding bracket for KHF2

All Available Sizes KHF2

Mouth opening (M)	Tape size (T)	Tape thickness (K)
5 mm	13 mm (current variant)	1.8 mm
5 mm	14 mm (9/16")	1.8 mm
5 mm	16 mm (5/8")	1.8 mm
5 mm	18 mm (23/32")	1.8 mm
5 mm	20 mm (3/4")	1.8 mm
5 mm	22 mm (7/8")	1.8 mm
5 mm	24 mm	1.8 mm
5 mm	26 mm (1")	1.8 mm
7 mm	12 mm	1.8 mm
7 mm	14 mm	1.8 mm
7 mm	16 mm (5/8")	1.8 mm
7 mm	18 mm (23/32")	1.8 mm
7 mm	20 mm (3/4")	1.8 mm
7 mm	22 mm (7/8")	1.8 mm
7 mm	24 mm	1.8 mm
7 mm	26 mm (1")	1.8 mm
7 mm	28 mm (1-1/8")	1.8 mm
7 mm	30 mm	1.8 mm
10 mm	22 mm	1.8 mm
10 mm	24 mm	1.8 mm
10 mm	26 mm	1.8 mm
10 mm	28 mm	1.8 mm
10 mm	30 mm	1.8 mm
10 mm	32 mm	1.8 mm
10 mm	34 mm	1.8 mm
10 mm	36 mm	1.8 mm
10 mm	38 mm	1.8 mm
10 mm	40 mm	1.8 mm

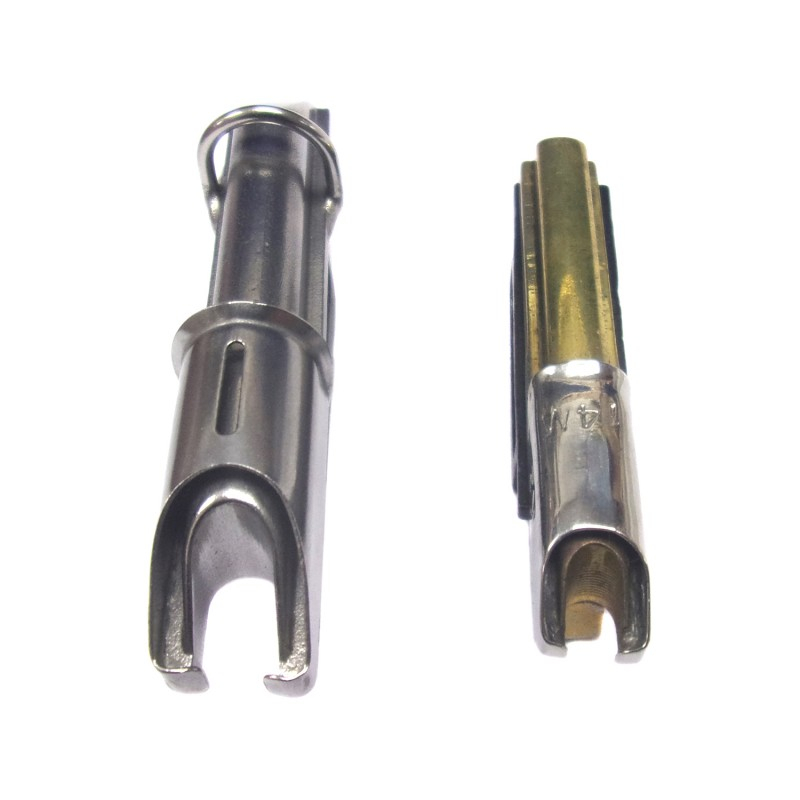

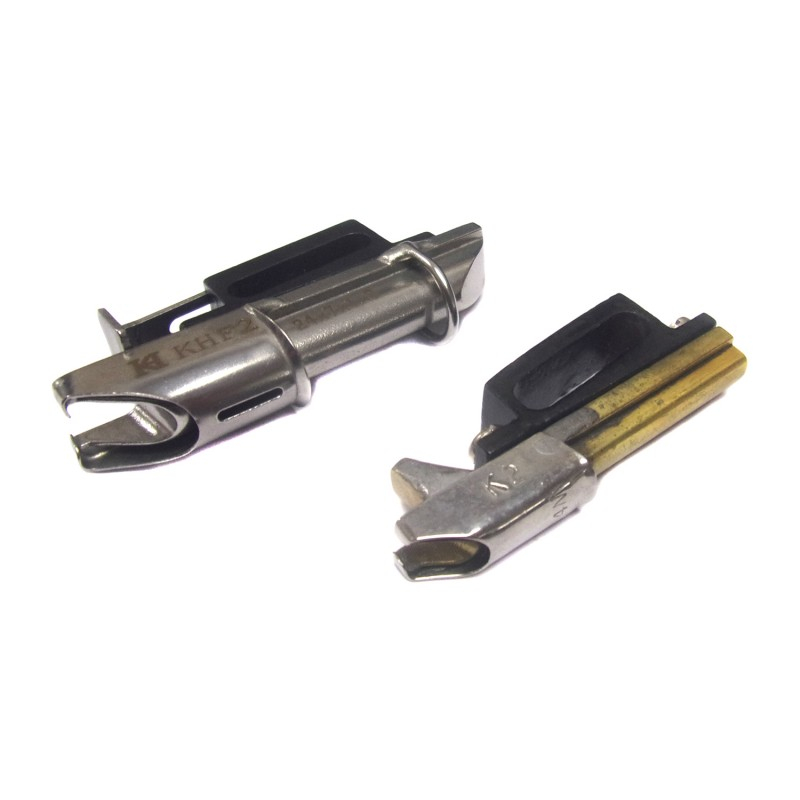

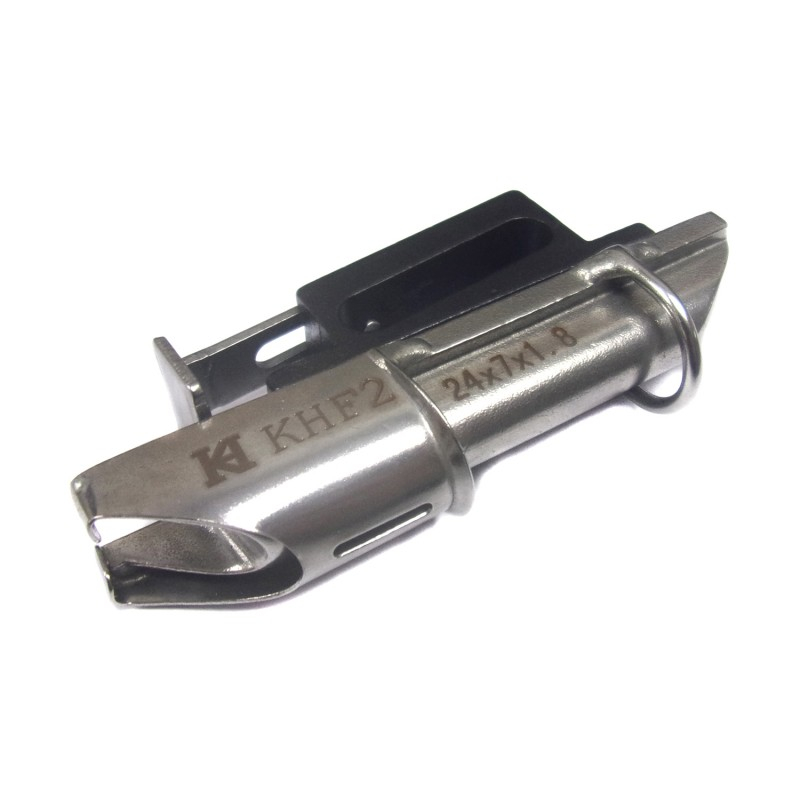

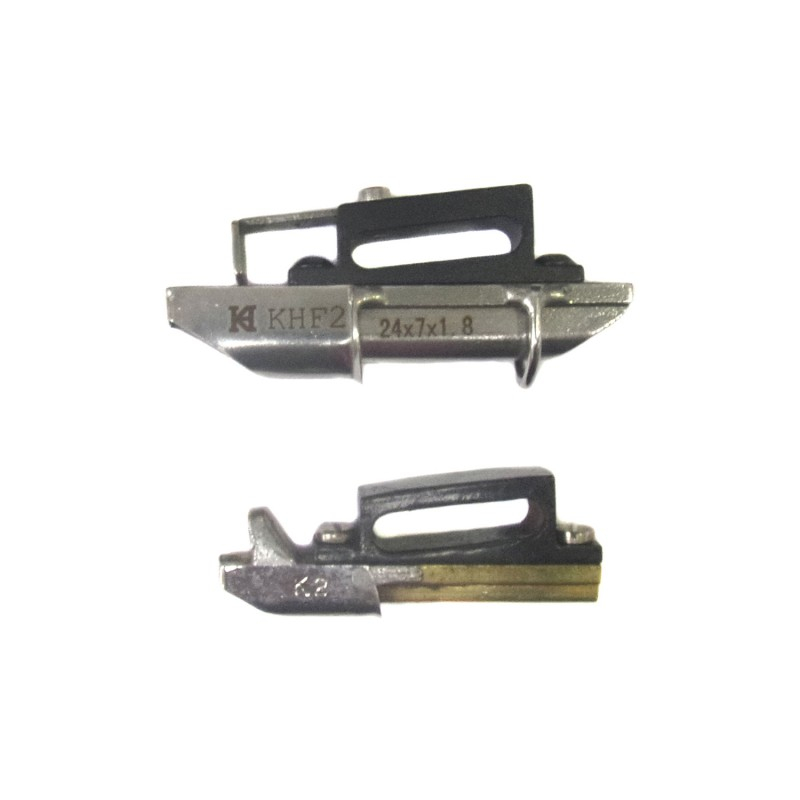

Note: The binders shown are for reference only. Different batches may look different, but it has no effect on the function.

Frequently Asked Questions

What is the KHF2 Raw Edge Binder?

The KHF2 is a raw edge binder for small-sized cylinder bed machines, used for applying edge binding tape on thin leather and plastic materials. The tape edge remains visible (raw, unfolded), creating a decorative or functional finish specific to the leather goods and leather garment industry.

What do the M, K and T parameters mean?

M (Mouth Opening) = the maximum thickness of material that can be inserted into the binder. K (Tape Thickness) = the maximum thickness of the tape used. T (Tape Size) = the width of the tape used. For the current variant: M=5mm, K=1.8mm, T=13mm.

What machines is the KHF2 compatible with?
