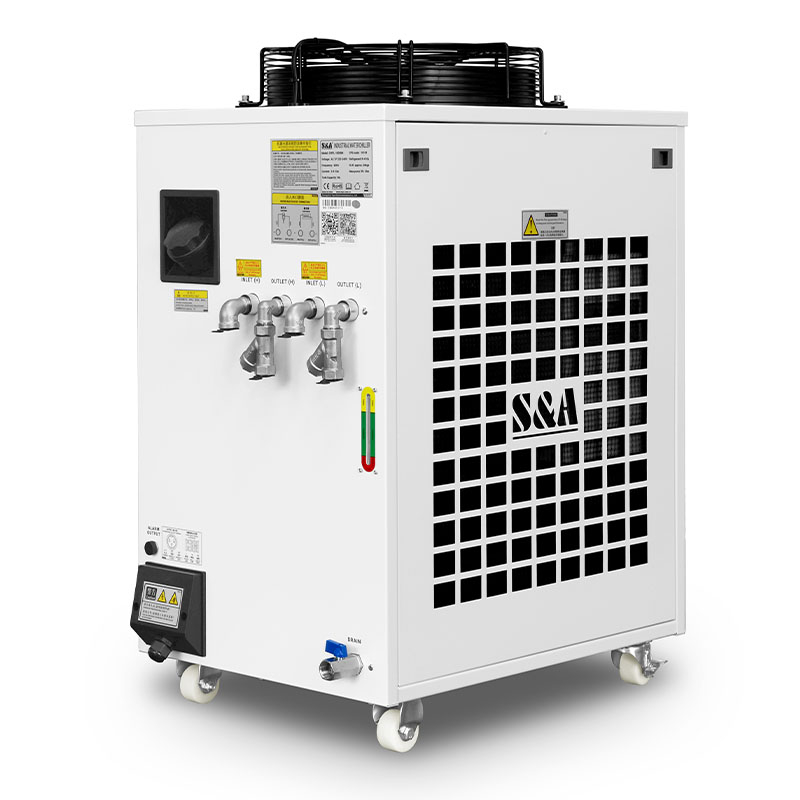

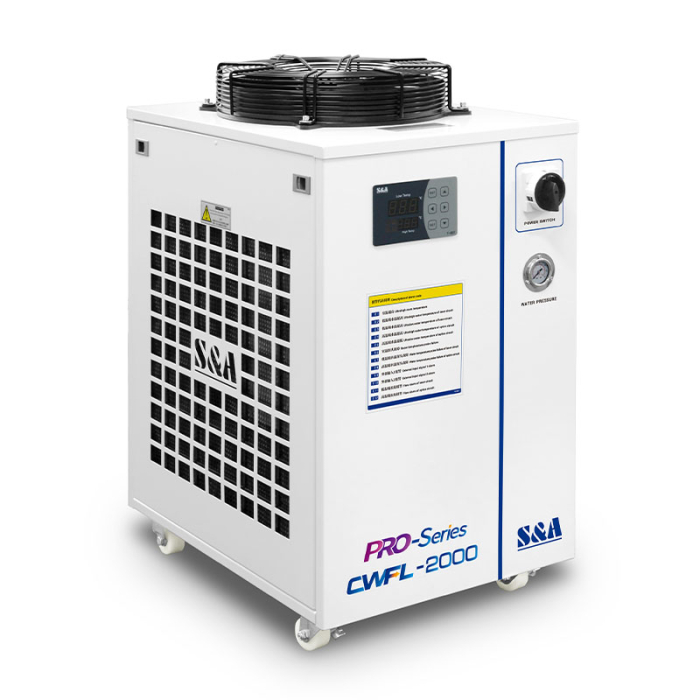

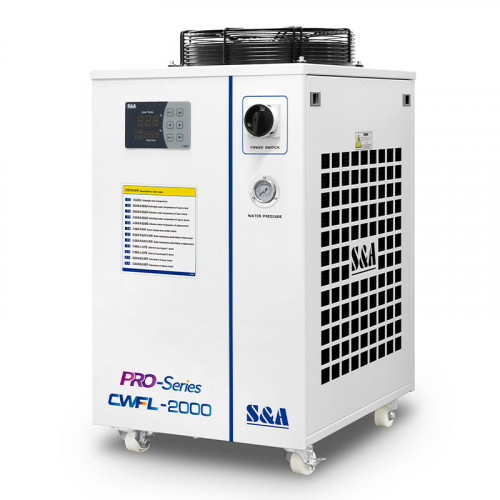

Water cooling circuit CWFL-2000AN

Water cooling circuit CWFL-2000AN
Water cooling circuit for 2000W fiber laser source cooling
CWFL-2000AN, original S&A!



CWFL-2000 is a high efficiency dual circuit process water chiller ideally suited for cooling fiber laser system up to 2KW. Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the other serves for cooling the optics. That means you don't need to buy two separate chillers. This laser water chiller uses nothing but components that conform to CE, REACH and RoHS standards. Providing active cooling featuring ±0.5℃ stability, CWFL-2000 water chiller can increase the lifetime and improve the performance of your fiber laser system.


-Dual cooling circuit (for cooling laser source and optical system)
- Delivery capacity: 2-12l/min @ 4,4bar
- Mains voltage: 230VAC
- Maximum power input: 3.63kW
- Nominal cooling capacity: ~5,5Kw
- Heater: 600W + 600W
- Tank size: 14l
- Pipe fitting: 1/2" + 1/2"
- Flow switch signal output
- Temperature stability: ±0.5°C
- Temperature control range: 5°C ~ 35°C
- User-friendly control interface
- Integrated alarm functions
- Rear-mounted filling port and visual water level
- Optimized for high performance at low temperatures
- Ready for immediate use
- Dimensions: 700x470x890 (H/W/W)
