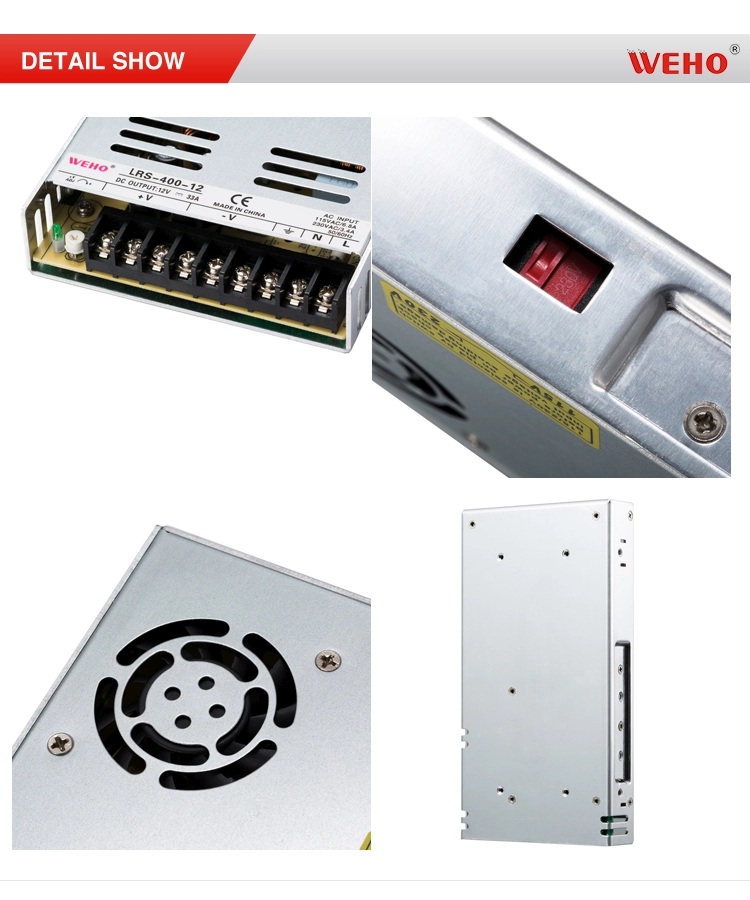

Stabilized power supply LRS-400

Switching Mode Stabilized Power Supply 400W
LRS-400 Series

Input: 110V-230V (50/60Hz)
Power: 400W
Size: 215 x 115 x 30mm
Active air cooled, fan cooled
Overheat, over-current and over-voltage protected!
4pcs mounting brackets included


Power Supply Specification Comparison

Table 1: English

MODEL	LRS-400-12	LRS-400-24
DC VOLTAGE	12V	24V
RATED CURRENT	33.3A	16.6A
CURRENT RANGE	0-33.3A	0-16.6A
RATED POWER	400W	400W
RIPPLE & NOISE (max.)	150mVp-p	150mVp-p
VOLTAGE ADJ. RANGE	10.2-13.8V	21.6-28.8V
VOLTAGE TOLERANCE	±1.0%	±1.0%
LINE REGULATION	±0.5%	±0.5%
LOAD REGULATION	±0.5%	±0.5%
SETUP, RISE TIME	500ms, 30ms/230VAC	500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)	16ms/230VAC	12ms/115VAC at full load
VOLTAGE RANGE	85-132VAC / 170-264VAC / 240-370VDC	same
FREQUENCY RANGE	47-63Hz	47-63Hz
EFFICIENCY	85.0%	89.0%
