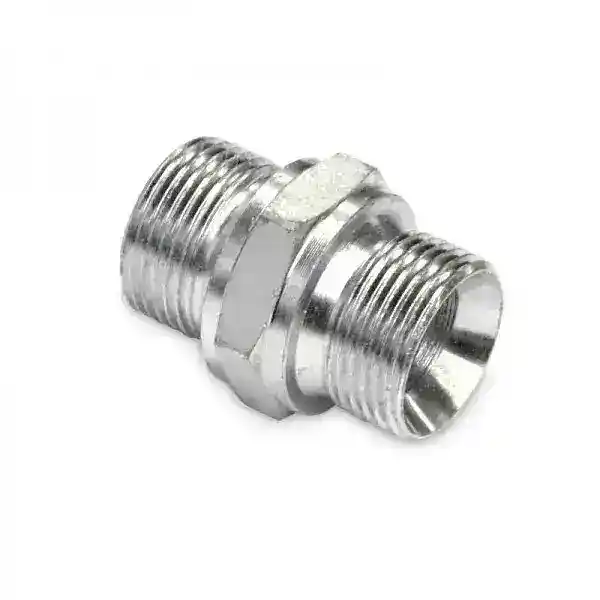

Hydraulic Steam Nipple ALL 1/2" - 1/2" Gas Thread - 60 Degree Cone Seal

The ALL 1/2" - 1/2" hydraulic nipple is a precision fitting made of chrome-plated steel, with external gas thread at both ends and a 60 degree cone seal. Designed for steam, hydraulic and pneumatic installations requiring a secure and durable seal. Distributed in Romania by All Stitch Automatizari SRL.

Technical Specifications

Key Features

• External gas thread 1/2" at both ends — compatible with standard fittings in textile and hydraulic industry
• 60 degree cone seal — secure sealing without additional gasket, no leaks
• Central hexagonal section — allows tightening with a fixed wrench for quick and safe installation
• Chrome-plated steel — resistant to corrosion, pressure and high temperatures
• Precision construction — precision-machined thread for perfect sealing
• Compatible with ALL steam hoses — fits directly onto ALL DN12 and DN20 series hoses

Why Choose the ALL 1/2" - 1/2" Nipple?

The ALL 1/2" - 1/2" hydraulic nipple is an essential component for making secure connections in industrial steam installations. The 60 degree cone seal eliminates the need for PTFE tape or additional gaskets, ensuring a direct metal-to-metal seal between the conical surfaces of the fittings.

The central hexagonal section allows the use of a standard fixed wrench for quick assembly and disassembly, without risk of thread damage. The chrome-plated steel material guarantees durability under high pressure and temperature conditions typical of industrial steam installations.

Fields of Application

• Industrial steam installations (generators, condensers, hoses)
• Connecting ALL steam hoses to equipment
• Hydraulic and pneumatic installations
• Tailoring and industrial garment manufacturing workshops
• Professional laundries and dry cleaning services
• Heating and fluid distribution installations

Compatibility

The ALL 1/2" - 1/2" nipple is compatible with:

• ALL DN12 and ALL DN20 steam hoses with 1/2" fittings
• Steam generators with 1/2" gas thread connections
• K/6/2 and AD/5 steam condensers
• Any equipment with 1/2" external or internal gas thread connection

Frequently Asked Questions

What is gas thread on a hydraulic nipple?

Gas thread (marked G or BSP) is a cylindrical thread standard used in pressurized fluid installations. On the ALL 1/2" nipple, the 1/2" external gas thread is compatible with all standard BSP 1/2" fittings in the hydraulic and steam industry.

What does 60 degree cone seal mean?

The 60 degree cone seal refers to the sealing type of the nipple: the conical surface of the nipple rests directly against the conical surface of the opposite fitting, creating a secure metal-to-metal seal without additional gaskets. It is the preferred solution for steam installations at high pressures.

Is the nipple compatible with ALL steam hoses?

Yes, the ALL 1/2" - 1/2" nipple is designed to be compatible with the entire ALL steam hose range (DN12 and DN20) with 1/2" fittings, ensuring a secure and leak-free connection in industrial steam installations.

Does it need PTFE tape for installation?

No. Due to the 60 degree cone seal, sealing is achieved metal-to-metal, directly between the conical surfaces. No PTFE tape or additional gaskets are required.
